A2F_PN40
A2F_PN40
型號：兩片式法蘭 低平台

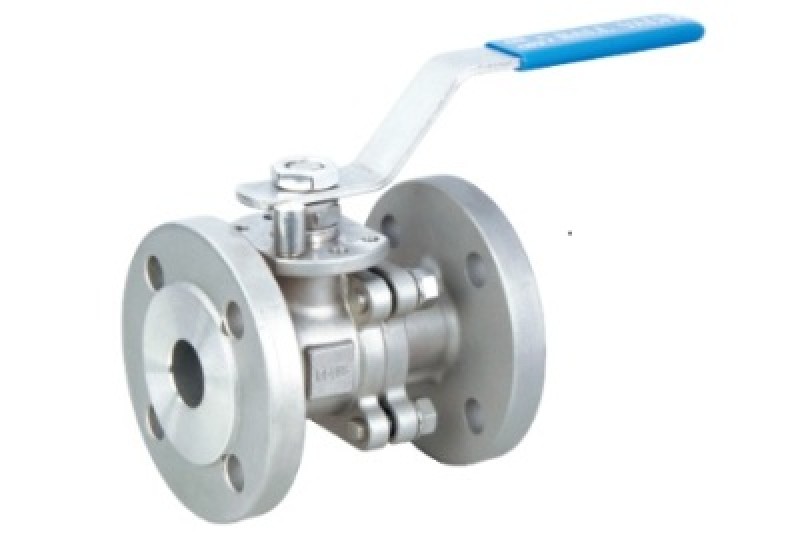

2-PC Full Port Ball Valve Flange
SIZE : 1/2"~4"
Flange end : EN 1092-1
Face to face : EN 558
Blow-out proof stem
ISO 5211 Low mounting pad (5"&6" High mounting pad)
Anti-static device
OPTION:
Fire-safe design
EN558 Series 27 / DIN 3202-1 F4
EN558 Series 1 / DIN 3202-1 F1
SIZE : 1/2"~4"
Flange end : EN 1092-1
Face to face : EN 558
Blow-out proof stem
ISO 5211 Low mounting pad (5"&6" High mounting pad)
Anti-static device
OPTION:
Fire-safe design
EN558 Series 27 / DIN 3202-1 F4
EN558 Series 1 / DIN 3202-1 F1

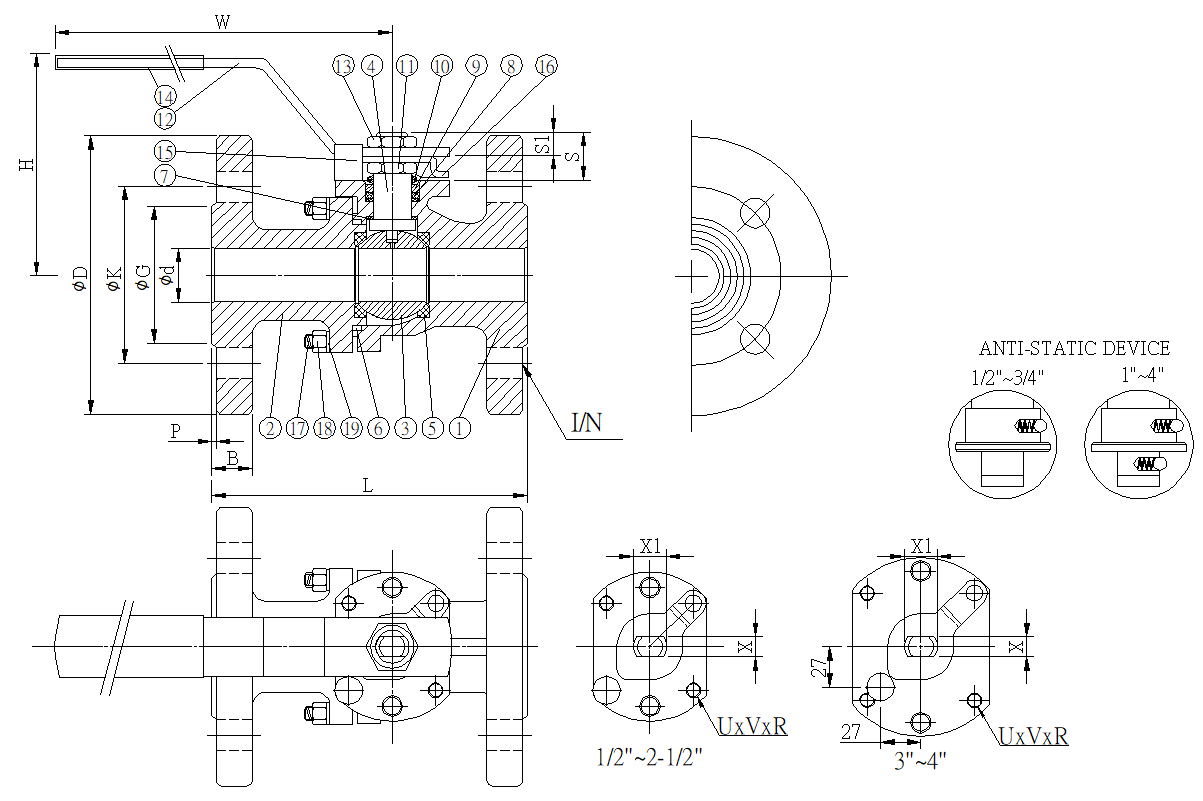

總圖
