A2F_150LBS
A2F_150LBS
型號：兩片式法蘭 低平台

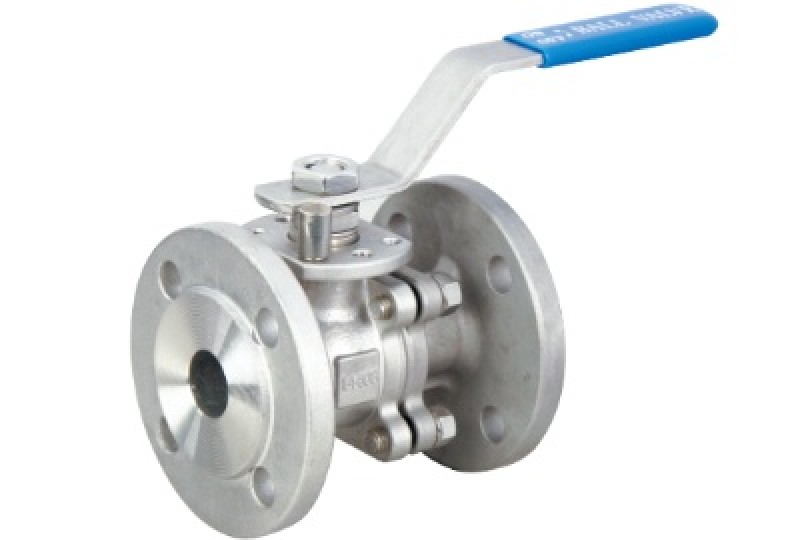

2-PC Full Port Ball Valve Flange
SIZE : 1/2"~6"
Flange end : ASME B16.5 Class 150
Face to face : ASME B16.10
Blow-out proof stem
ISO 5211 Low mounting pad (5"&6" High mounting pad)
Anti-static device
OPTION:
Fire-safe design
SIZE : 1/2"~6"
Flange end : ASME B16.5 Class 150
Face to face : ASME B16.10
Blow-out proof stem
ISO 5211 Low mounting pad (5"&6" High mounting pad)
Anti-static device
OPTION:
Fire-safe design

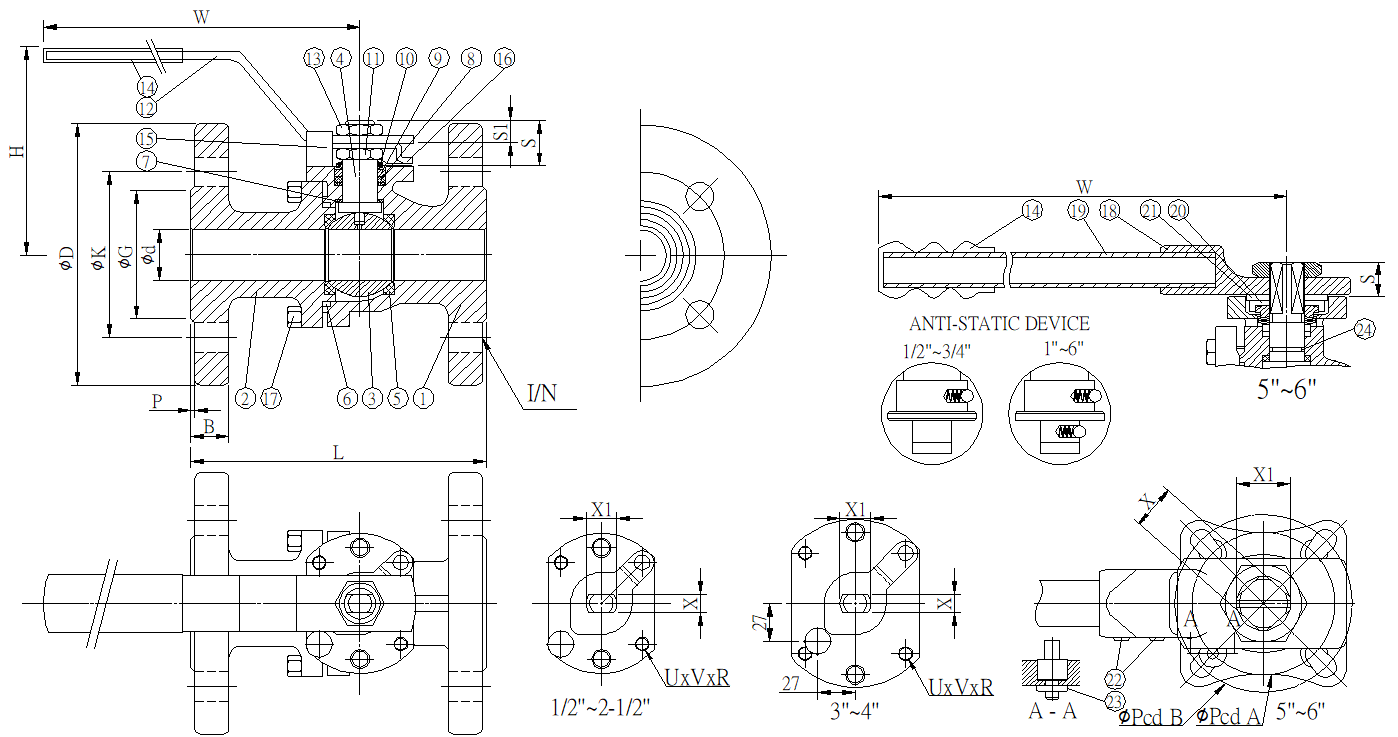

總圖
檔案下載
產品詢問
| 圖片 | 商品名稱 |
|---|---|
|
A2F_150LBS 兩片式法蘭 低平台 |
