A3WAYMH_1000 PSI
A3WAYMH_1000 PSI
型號：三通 高平台 減流

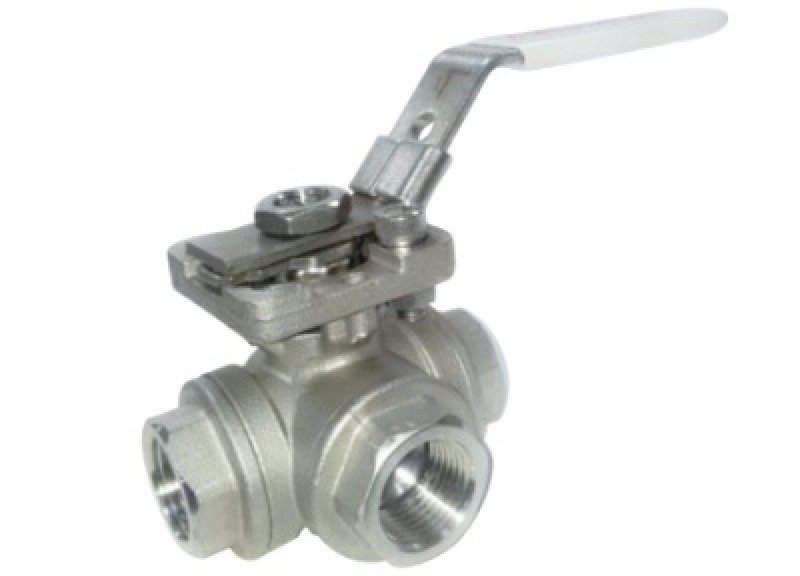

3-PC Mounting Pad Reduced Ball Valve
Valve end thread = G 228 BSPP / PT RC / NPT
Blow-out proof stem
Locking device
ISO 5211 High mounting pad
L-port / T-port
OPTION:
1. Anti-static device
Valve end thread = G 228 BSPP / PT RC / NPT
Blow-out proof stem
Locking device
ISO 5211 High mounting pad
L-port / T-port
OPTION:
1. Anti-static device

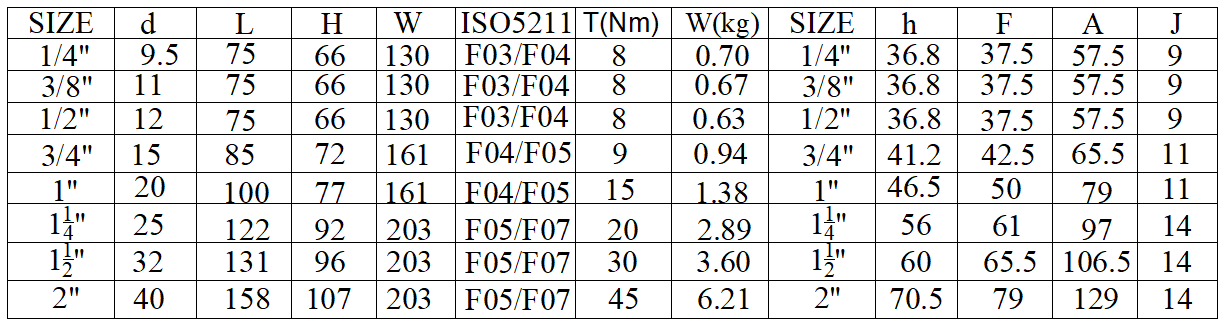

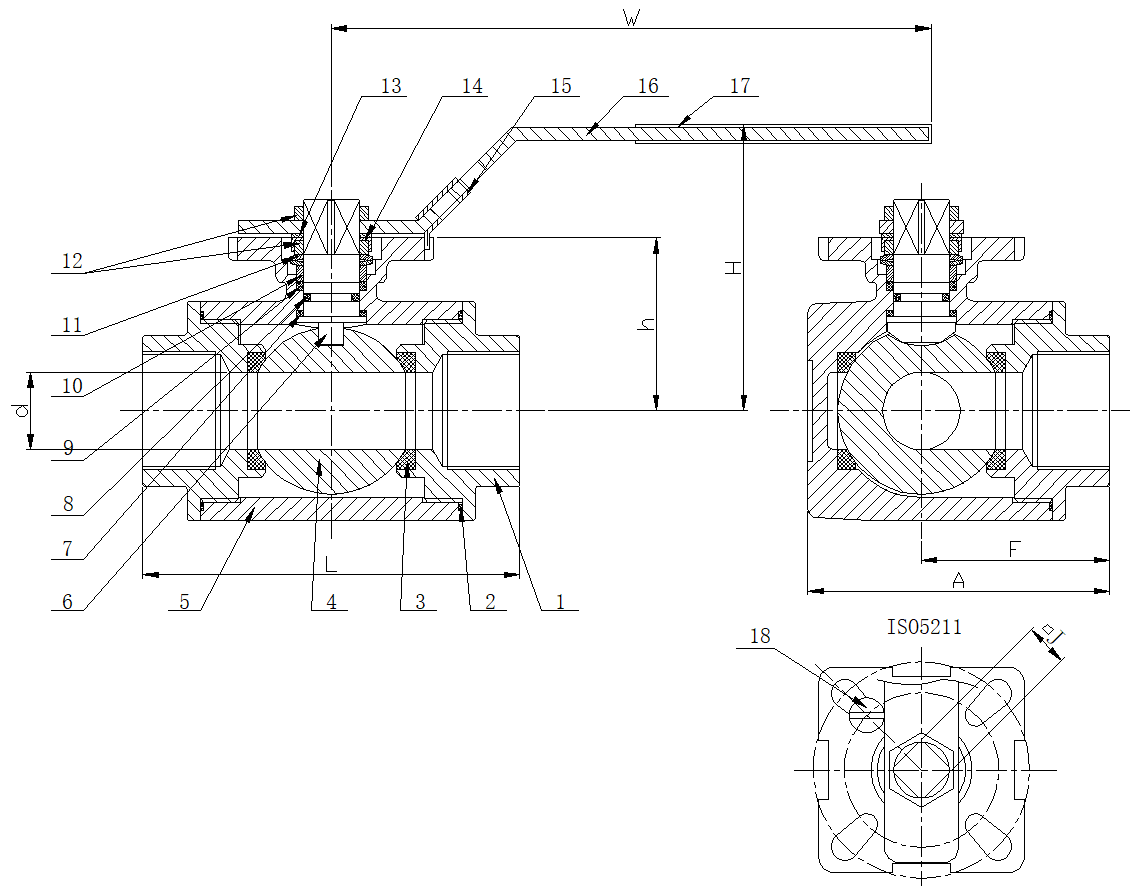

尺寸 / 扭力

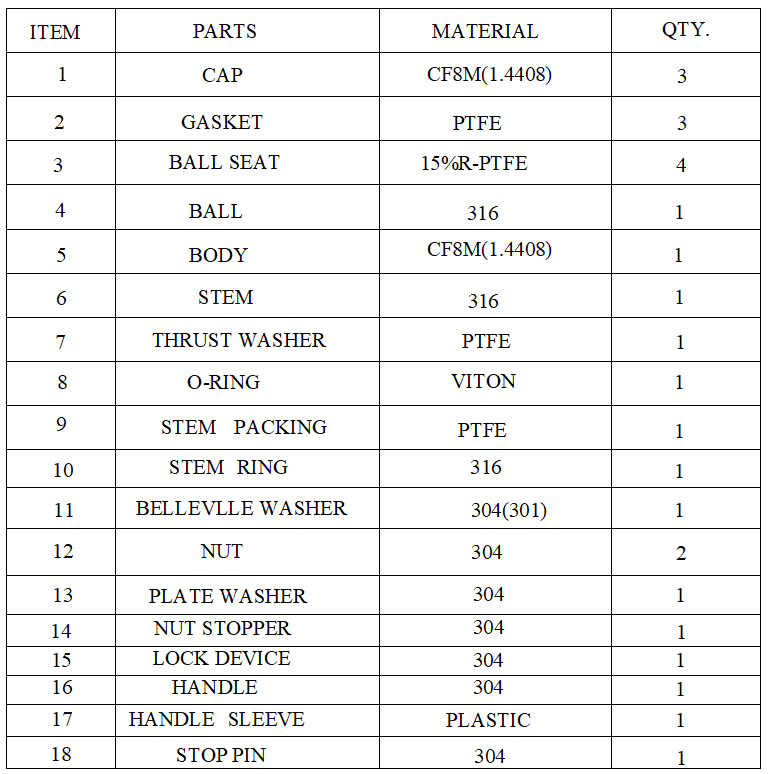

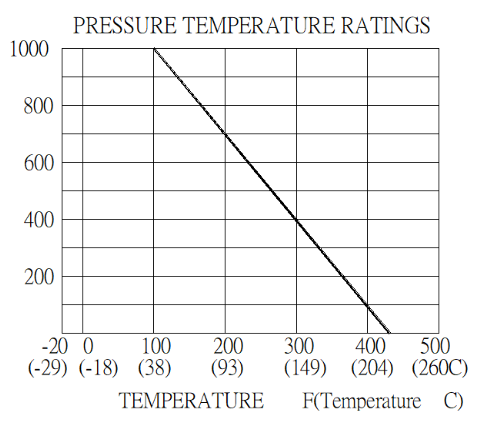

BOM表 材質 / 溫壓表
檔案下載
產品詢問
| 圖片 | 商品名稱 |
|---|---|
|
A3WAYMH_1000 PSI 三通 高平台 減流 |
