V3L_1000PSI
V3L_1000PSI
型號：三片式全流

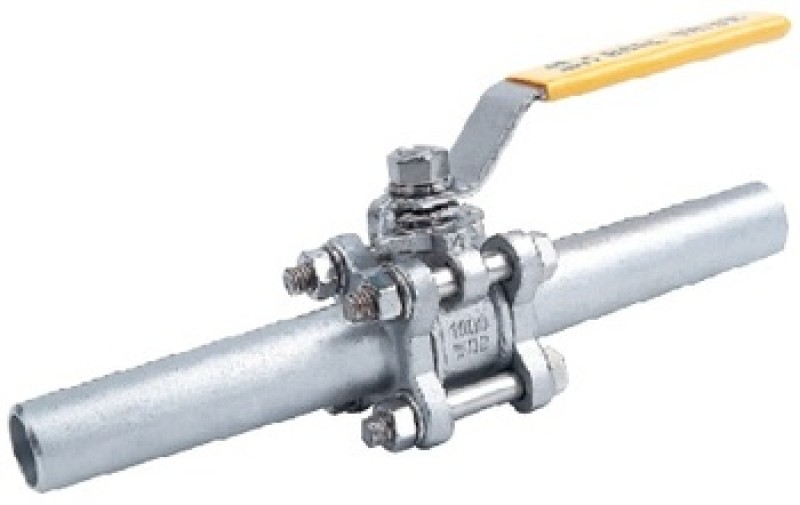

3-PC Full Port Ball Valve
SIZE :1/4"~4"
Long butt weld end
Blow-out proof stem
Locking device
Lug body
OPTION:
1. Anti-static device
2. Direct mounting pad ISO 5211
SIZE :1/4"~4"
Long butt weld end
Blow-out proof stem
Locking device
Lug body
OPTION:
1. Anti-static device
2. Direct mounting pad ISO 5211

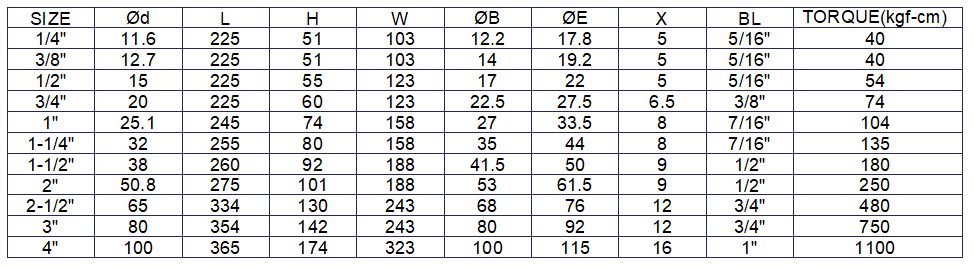

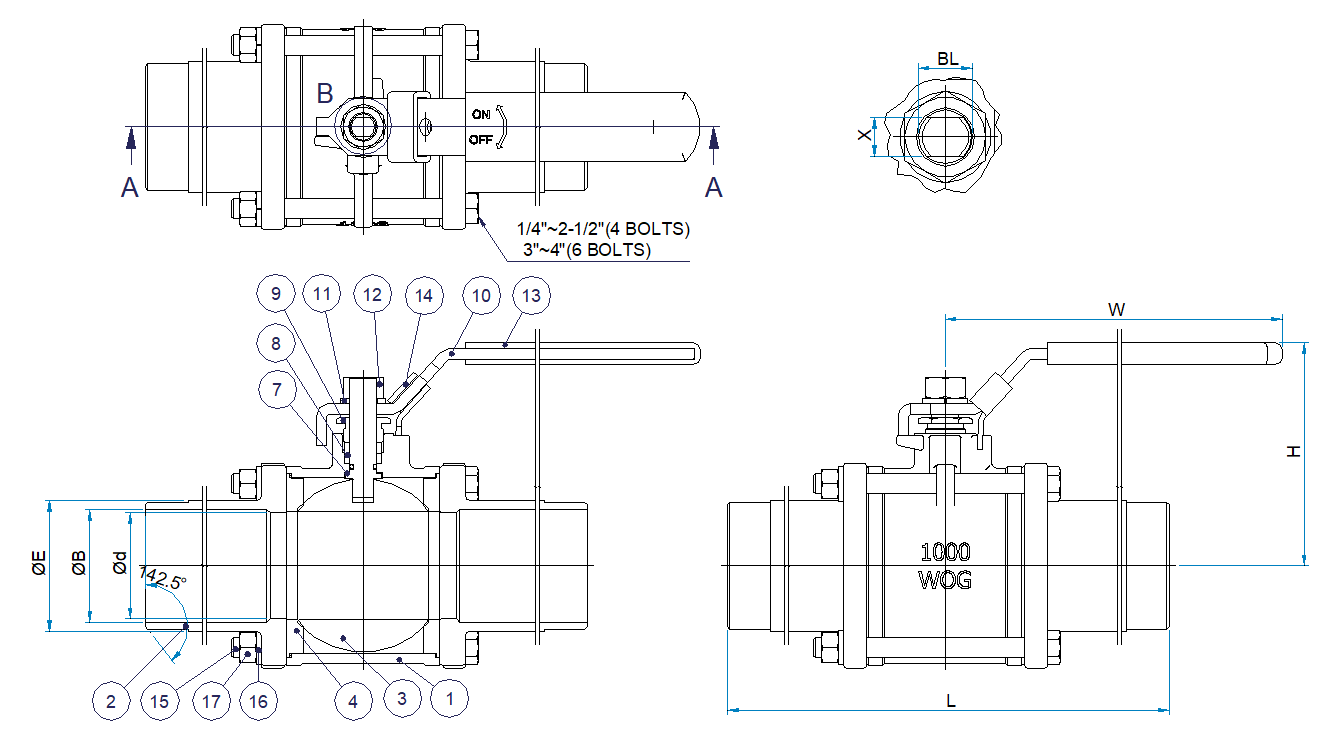

尺寸 / 扭力

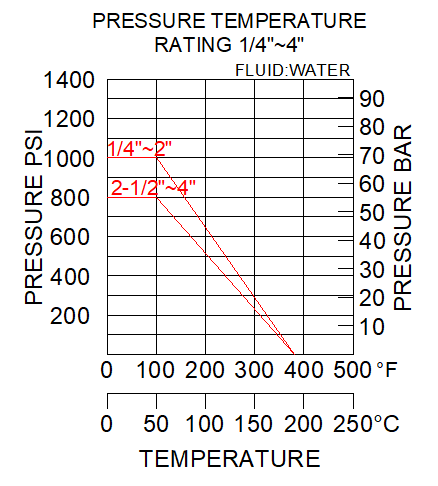

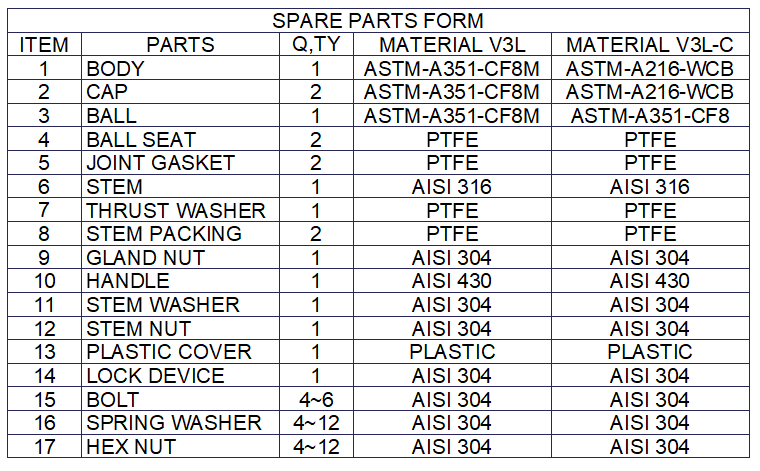

BOM表 材質 / 溫壓表
產品詢問
| 圖片 | 商品名稱 |
|---|---|
|

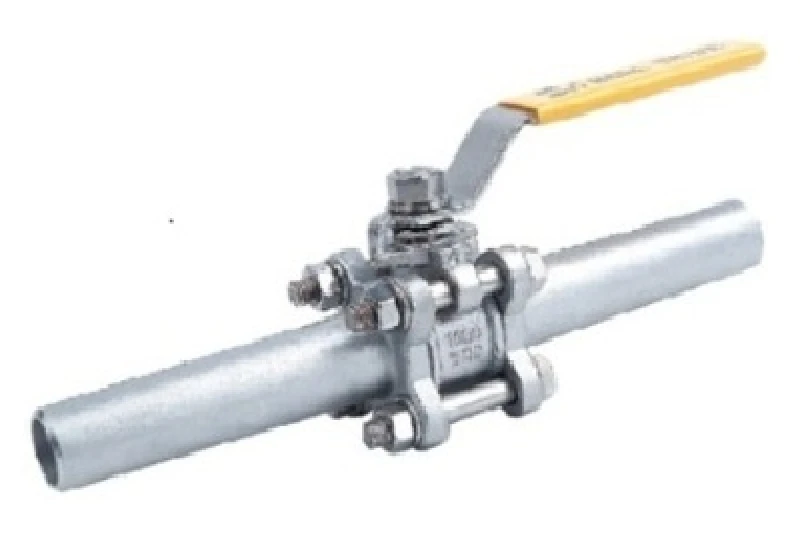

V3L_1000PSI 三片式全流 |
