V3N_1000PSI
V3N_1000PSI
型號：三片式全流

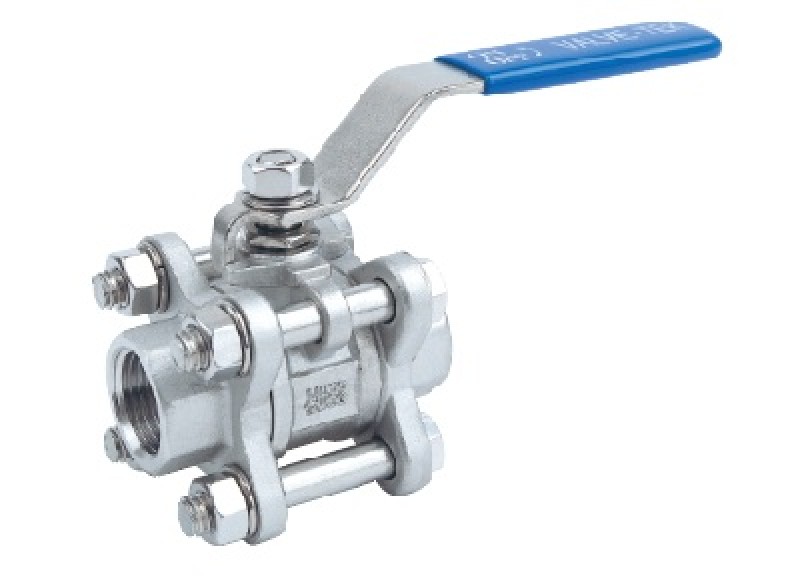

3-PC Full Port Ball Valve
SIZE : 1/4"~4"
Valve end thread : G 228 BSPP / PT RC / NPT
Valve end : Butt weld end / Socket weld end
Blow-out proof stem
Locking device
Lug body
OPTION:
1. Anti-static device
SIZE : 1/4"~4"
Valve end thread : G 228 BSPP / PT RC / NPT
Valve end : Butt weld end / Socket weld end
Blow-out proof stem
Locking device
Lug body
OPTION:
1. Anti-static device

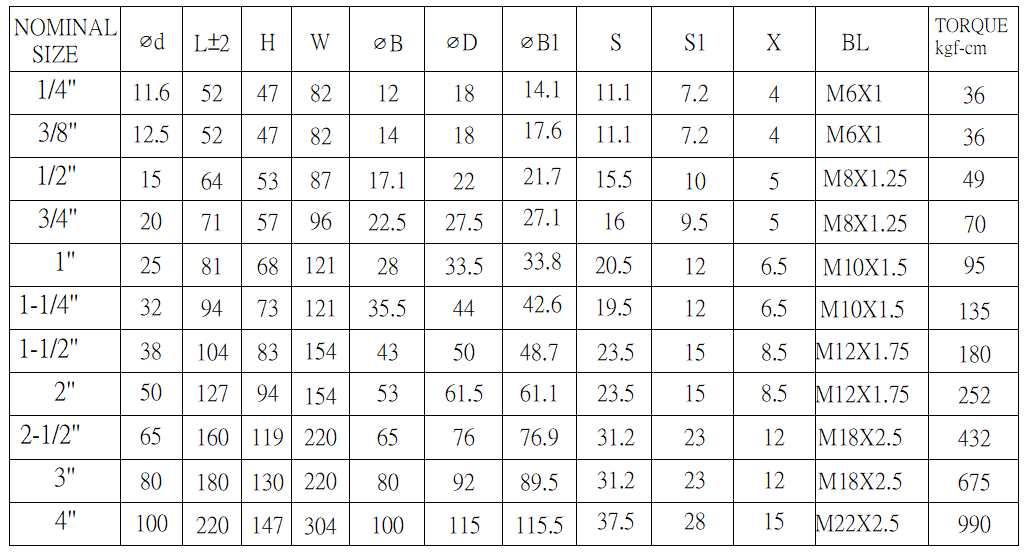

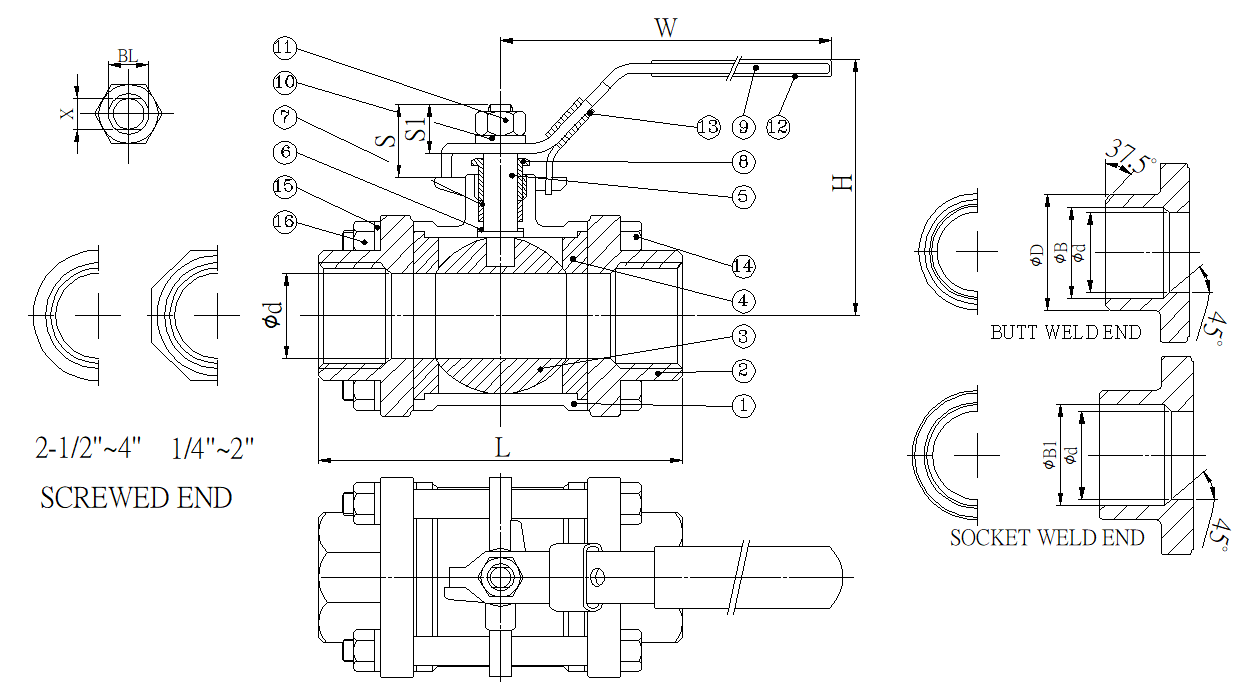

尺寸 / 扭力

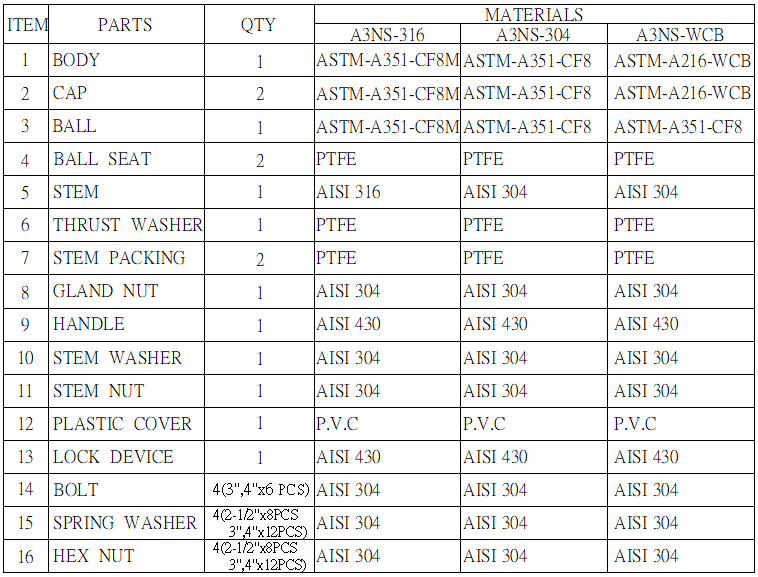

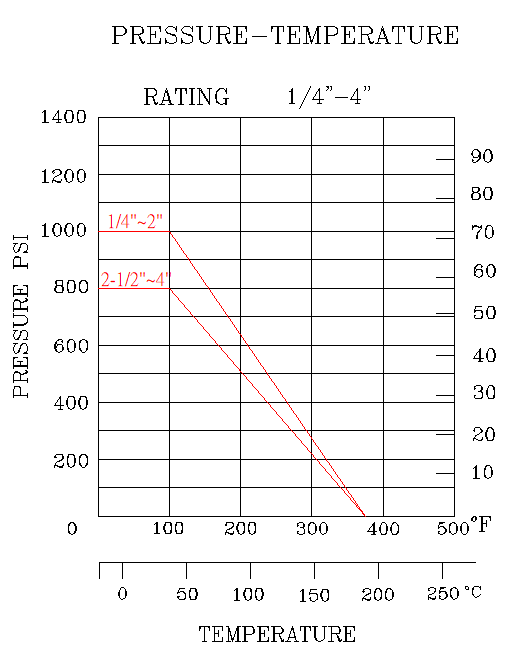

BOM表 材質 / 溫壓表
檔案下載
產品詢問
| 圖片 | 商品名稱 |
|---|---|
|
V3N_1000PSI 三片式全流 |
