A3NS_1000PSI
A3NS_1000PSI
型號：三片式全流 (經濟型)

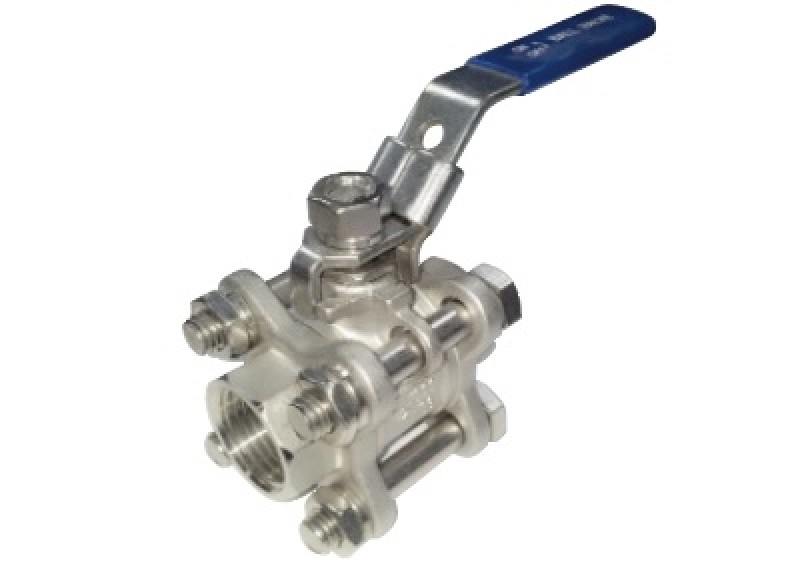

3-PC Full Port Ball Valve (Economic Type)
SIZE : 1/4"~4"
Pressure :
1/4"~1-1/4"=1000PSI
1-1/2"~2"=800PSI
2-1/2"~4"=600PSI
Valve end thread : G 228 BSPP / PT RC / NPT
Valve end : Butt weld end / Socket weld end
Blow-out proof stem
Locking device
OPTION:
1. Anti-static device
SIZE : 1/4"~4"
Pressure :
1/4"~1-1/4"=1000PSI
1-1/2"~2"=800PSI
2-1/2"~4"=600PSI
Valve end thread : G 228 BSPP / PT RC / NPT
Valve end : Butt weld end / Socket weld end
Blow-out proof stem
Locking device
OPTION:
1. Anti-static device

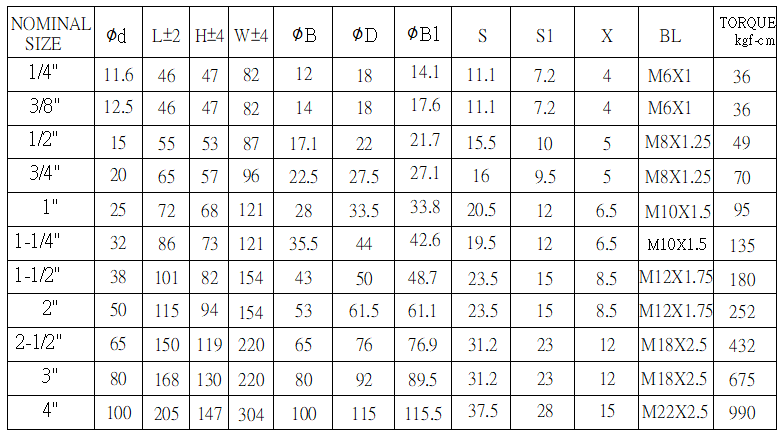

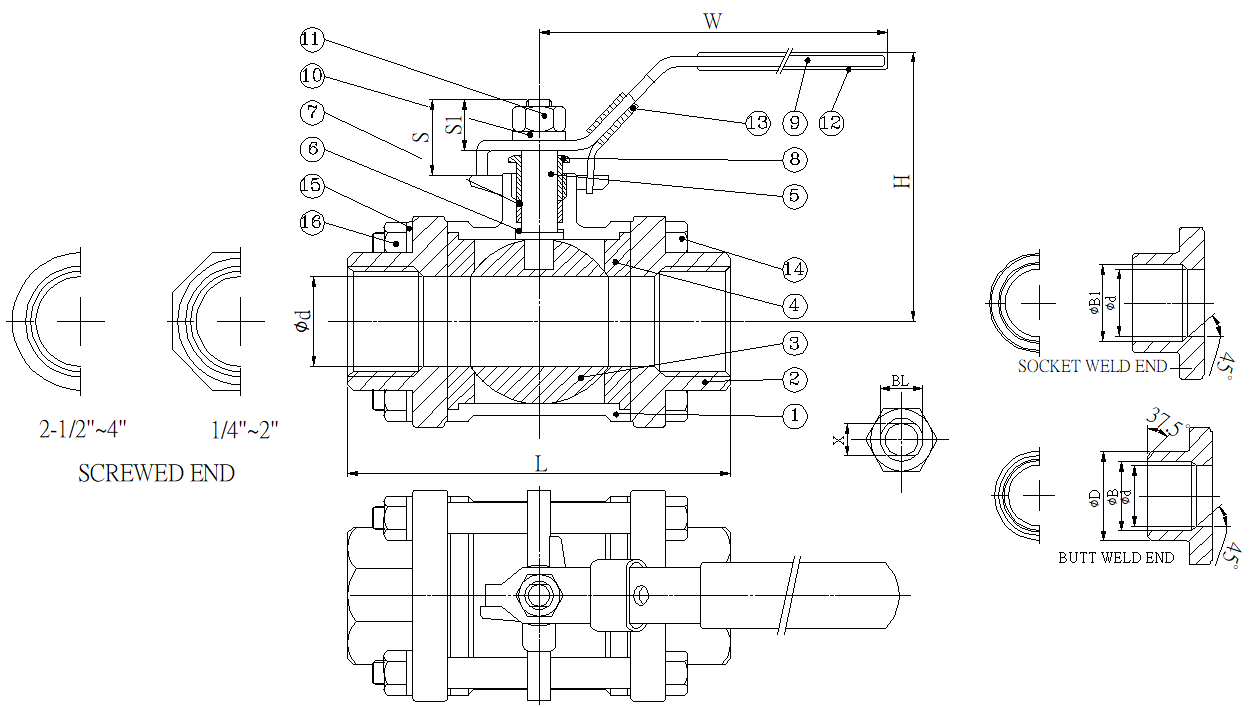

尺寸 / 扭力

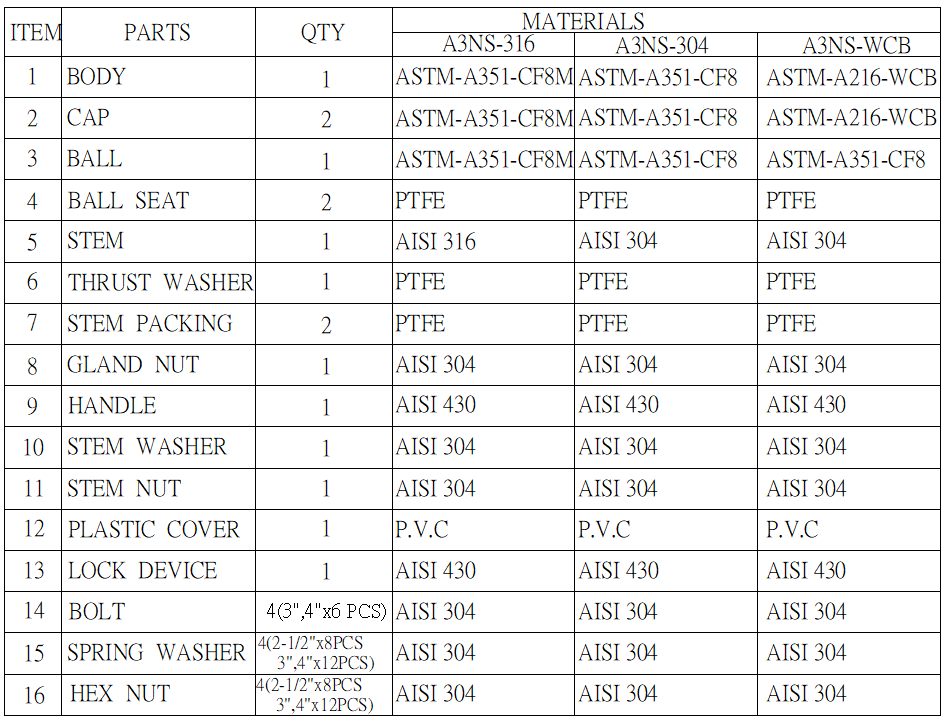

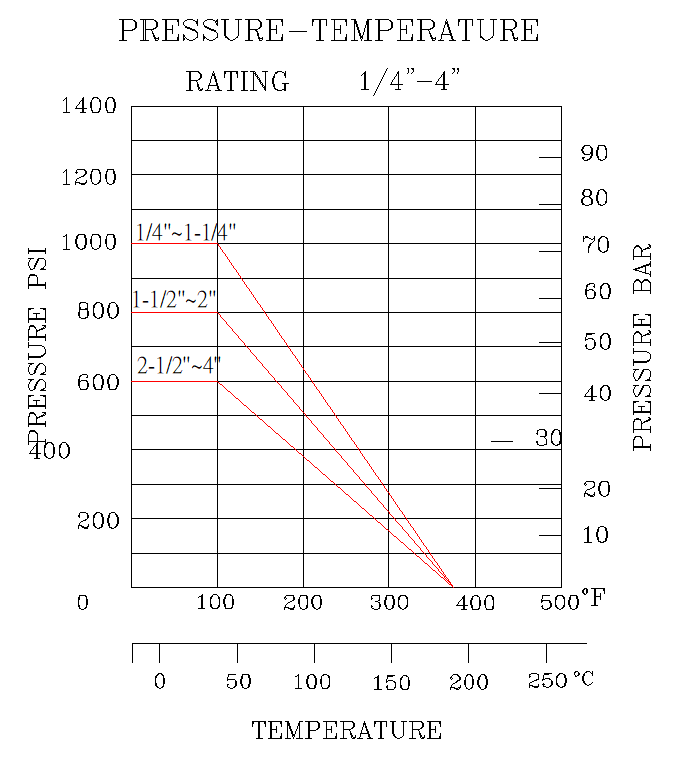

BOM表 材質 / 溫壓表
檔案下載
產品詢問
| 圖片 | 商品名稱 |
|---|---|
|
A3NS_1000PSI 三片式全流 (經濟型) |
