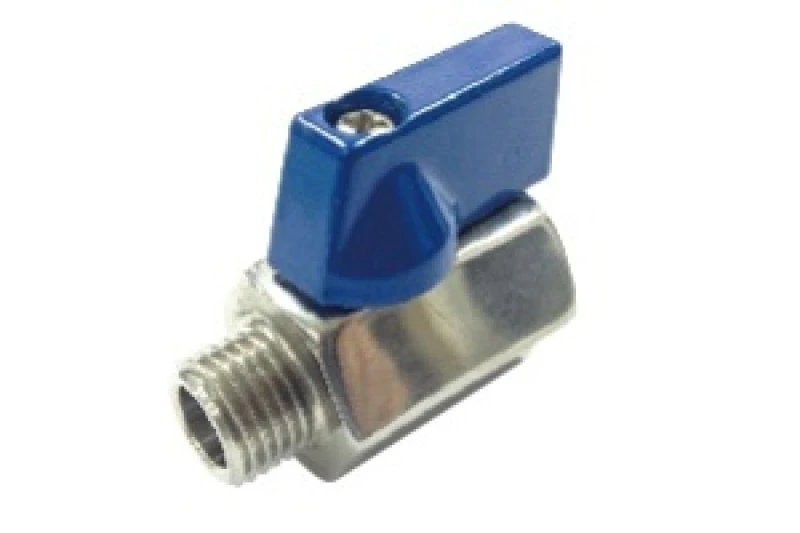

A1-MINI_1000PSI
A1-MINI_1000PSI

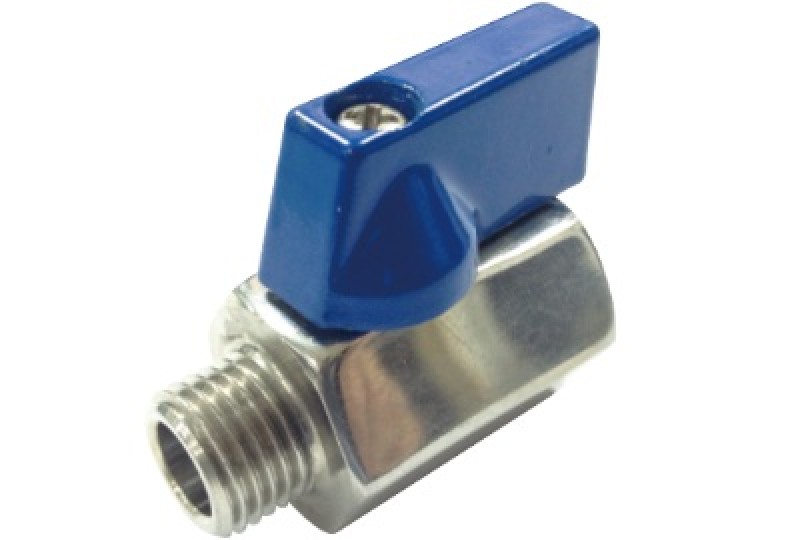

型號：迷你閥
1-PC Reduced Port Ball Valve
Valve end thread = G 228 BSPP / PT RC / NPT
Blow-out proof stem
OPTION:
1. Female x Female
2. Female x Male
3. Male x Male
Valve end thread = G 228 BSPP / PT RC / NPT
Blow-out proof stem
OPTION:
1. Female x Female
2. Female x Male
3. Male x Male

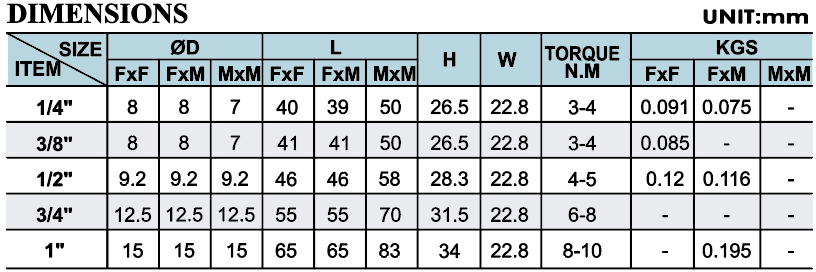

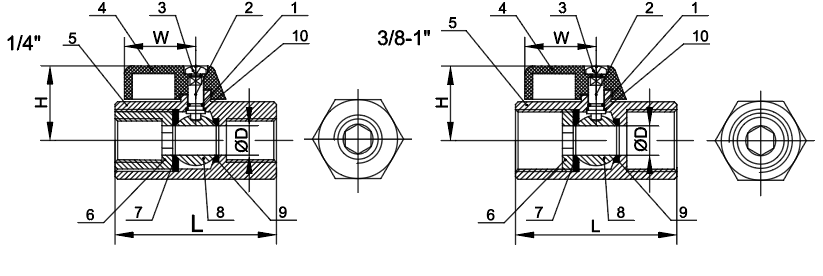

尺寸 / 扭力

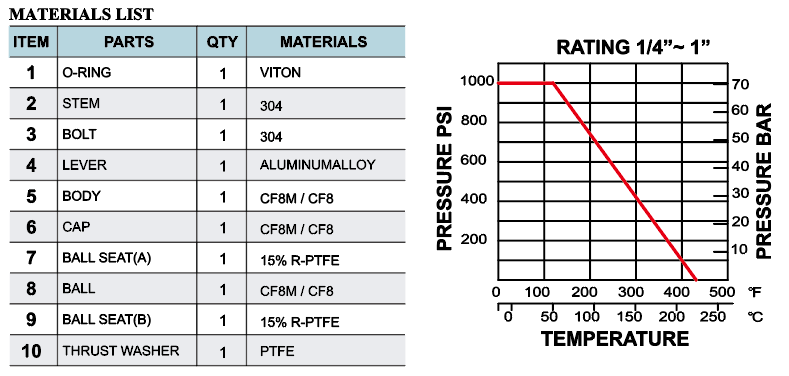

BOM表 材質 / 溫壓表
檔案下載
產品詢問
| 圖片 | 商品名稱 |
|---|---|
|
A1-MINI_1000PSI 迷你閥 |
