V2N_1000PSI
V2N_1000PSI
型號：兩片式全流

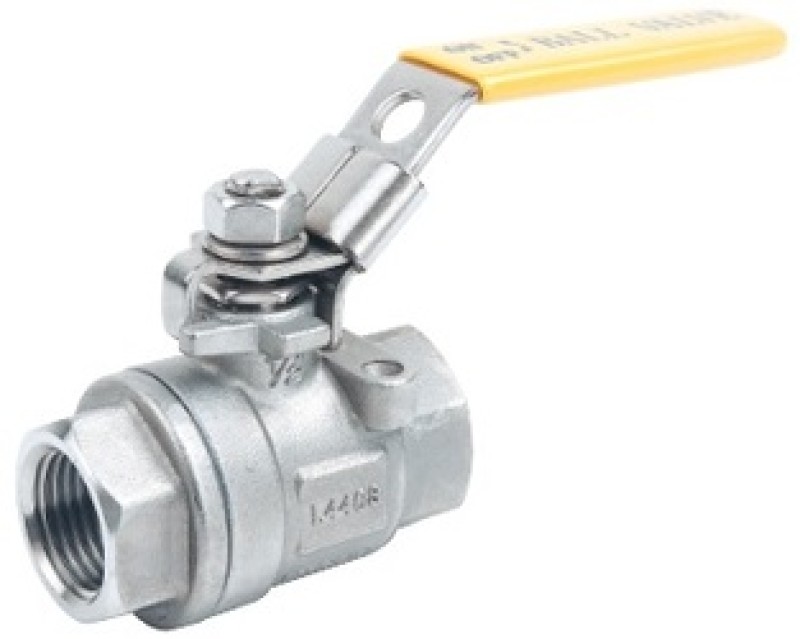

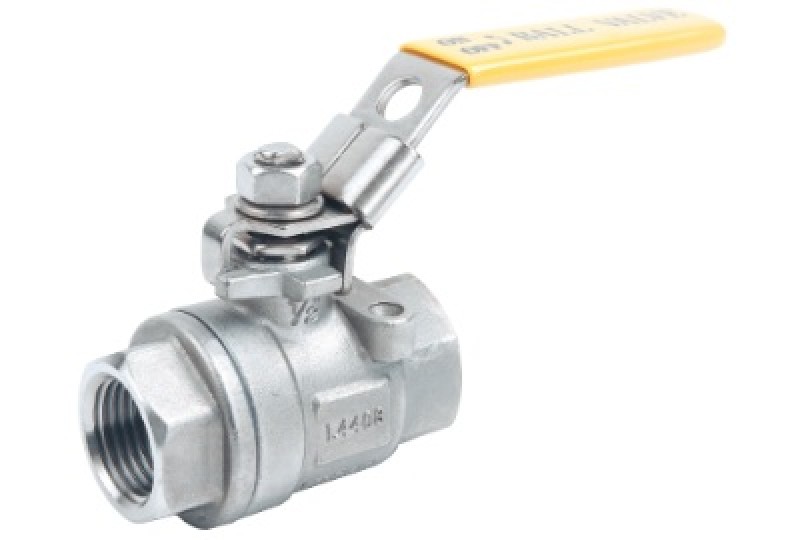

2-PC Full Port Ball Valve
Valve end thread = G 228 BSPP / PT RC / NPT
Blow-out proof stem
OPTION:
1. Drilling and tapped mounting pad
Valve end thread = G 228 BSPP / PT RC / NPT
Blow-out proof stem
OPTION:
1. Drilling and tapped mounting pad

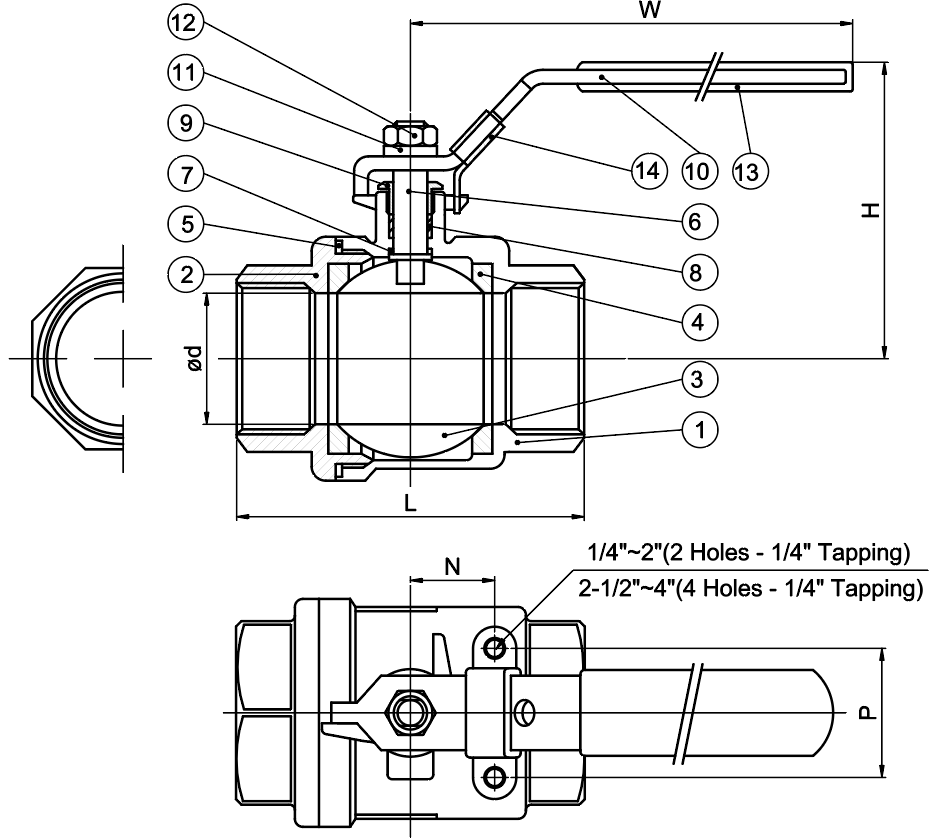

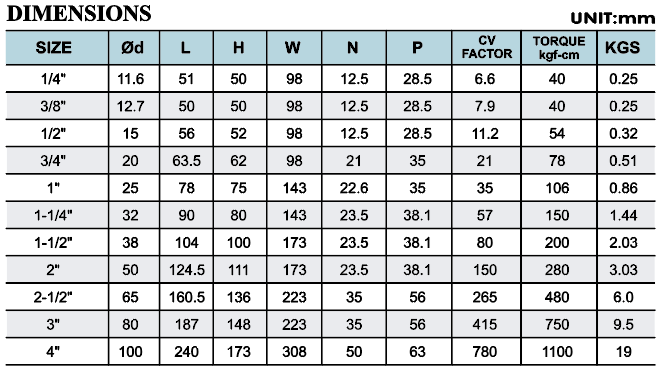

尺寸 / 扭力

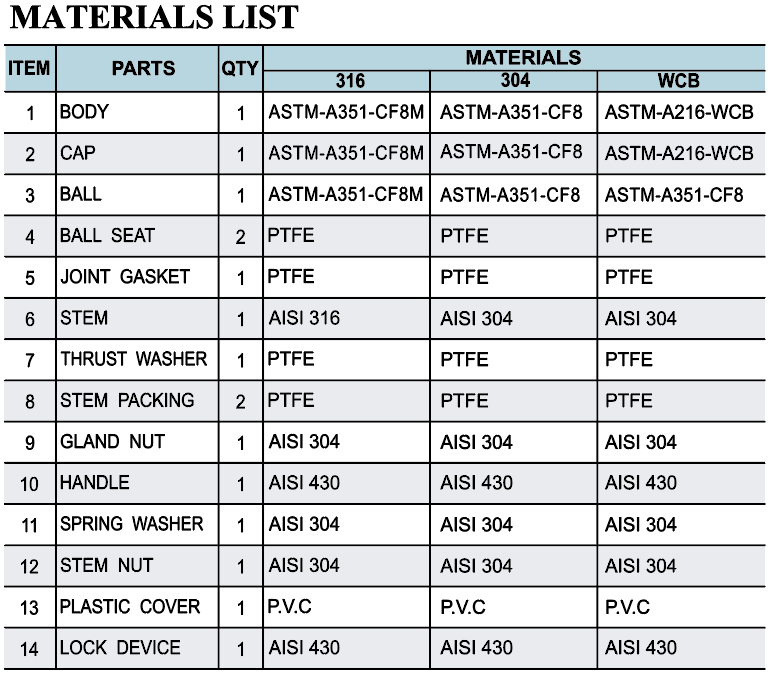

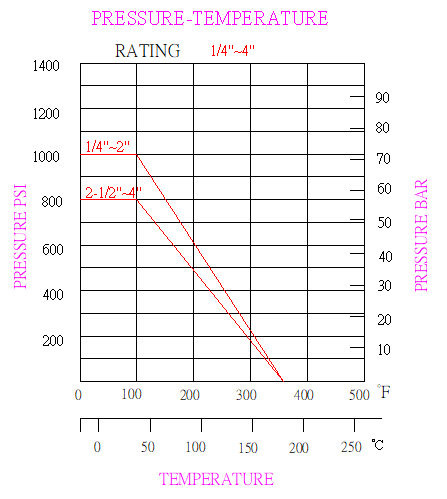

BOM表 材質 / 溫壓表
檔案下載
產品詢問
| 圖片 | 商品名稱 |
|---|---|
|
V2N_1000PSI 兩片式全流 |
